Setup multiple vRA tenants using powershell and the vRA7 REST API

Following on from my post on Creating a local user in vRA7 using the REST API i wanted to try and script the entire process of creating multiple vRealize Automation 7 tenants as in our lab as we often need to spin up multiple tenants for testing or development purposes.

Some assumptions:

  • Each tenant has the same prefix of “dev-” and is appended with a 3 digit number starting at “001”
  • Each tenant gets the same local user created with matching credentials
  • Each tenant gets the same AD directory added
  • Each tenant gets the same AD groups added

This script will do the following:

  • Log into the default tenant
  • Create a new tenant
  • Create a local user for the tenant
  • Add the local user as a tenant & IaaS admin
  • Log into the new tenant as the local user
  • Setup identity store directories
  • Log back into the default tenant
  • Edit the new tenant
  • Add domain users/groups as tenant & IaaS admins
  • Log into the new tenant as a tenant and IaaS admin and start configuring the tenant

So as to avoid the requirement to edit the powershell script directly i put all configuration variables in an external .cfg file. This file needs to be placed in the same directory as the powershell script.

Firstly here is the config file contents. Edit each variable to match your environment. Modify the numberOfTenants variable to set the number of tenants you want to create. The example below will create 20 tenants.

[vRA FQDN]
VRA=vra-vip.domain.local

[vRA Credentials to acquire authentication token]
vRAUsername=administrator@vsphere.local
vRAPassword=Password123!
vRADefaultTenant=vsphere.local

[Create tenant details]
numberOfTenants=2
tenantIDPrefix=dev-
tenantURLPrefix=dev-
tenantNamePrefix=dev-
tenantDescription=DevelopmentTenant
tenantemailAddress=admin@vsphere.local

[Local Admin User Details]
firstName=vRA
lastName=Admin
emailAddress=vraadmin@vsphere.local
description=vRAAdmin
locked=false
disabled=false
password=Password123!
domain=vsphere.local
userName=vraadmin
name=vraadmin

[Tenant Directory Details]
adDomain=domain.local
adDomainalias=Domain
type=AD
adUserNameDn=cn=adbind_vra,OU=EHC,DC=domain,DC=local
adBindPassword=Password123!
adURL=ldap://domain.local:389
adGroupBaseSearchDn=ou=EHC,DC=domain,DC=local
adUserBaseSearchDn=ou=EHC,DC=domain,DC=local

[AD Domain Groups to add as Tenant & IaaS Admins]
tenantAdmins=EHC_Tenant_Admins@domain.local
tenantRoleID=CSP_TENANT_ADMIN
iaasAdmins=EHC_IaaS_Admins@domain.local
iaasRoleID=COM_VMWARE_IAAS_IAAS_ADMINISTRATOR

And here is the script to create the tenants. It is broken up into multiple functions

# Script to create vRA7 Tenants in bulk
# Ensure you update the associated cfg file
# with the details of your vRA environment
# and details of the tenants you wish to create
# Created by Brian O'Connell
# Version 1.0.0

# Import configuration variables from external cfg file
Get-Content createvRATenants.cfg | Foreach-Object{
if ($_.length -gt 0) {
 $var = $_ -Split '=',2
 New-Variable -Name $var[0] -Value $var[1]
 }
 }

Function getvRAAuthToken {
# Construct credentials from config file
$credentials=@{username=$vRAUsername;password=$vRAPassword;tenant=$vRADefaultTenant}
############# Get Auth token ###############
$headers=@{
 "Accept"="application/json"
}
$Global:token = Invoke-RestMethod -Uri "https://$($VRA)/identity/api/tokens" -Method Post -Headers $headers -ContentType application/json -Body (ConvertTo-Json $credentials) | Select -ExpandProperty id
Write-Host "vRA Authentication Token Acquired" -ForegroundColor Green
 }

Function createvRATenant {
 # ############ Create Tenant ###############
$headers = @{"Accept" = "application/json"}
$headers.Add("Authorization", "Bearer $token")

#Create the Tenant
for ($firstTenantNumber=1; $firstTenantNumber -le $numberOfTenants; $firstTenantNumber++)
{
 New-Variable -Name "var$firstTenantNumber" -Value $firstTenantNumber
 $tenantNumber = $firstTenantNumber.ToString("000")
$tenantid = -join ($tenantIDPrefix,$tenantNumber)
$tenantURL = -join ($tenantURLPrefix,$tenantNumber)
$tenantName = -join ($tenantNamePrefix,$tenantNumber)
$tenantBody= @"
{
 "@type": "Tenant",
 "id": "$tenantid",
 "urlName": "$tenantURL",
 "name": "$tenantName",
 "description": "$tenantDescription",
 "contactEmail": "$tenantemailAddress"
}
"@

$createTenant = Invoke-RestMethod -Method PUT -URI "https://$($VRA)/identity/api/tenants/$($tenantID)" -headers $headers -ContentType application/json -body $tenantBody
Write-Host "Tenant $($tenantName) created successfully" -ForegroundColor Green
}
 }

Function createvRALocalAdminUser {
 ############# Create Local Admin User ###############

$headers = @{"Accept" = "application/json"}
$headers.Add("Authorization", "Bearer $token")
$userBody= @"
{ "@type": "User",
 "firstName": "$firstName",
 "lastName": "$lastName",
 "emailAddress": "$emailAddress",
 "description": "$description",
 "locked": false,
 "disabled": false,
 "password": "$password",
 "domain": "$domain",
 "userName": "$userName",
 "principalId": {
 "domain": "$domain",
 "name": "$name"
 }
}
"@

for ($firstTenantNumber=1; $firstTenantNumber -le $numberOfTenants; $firstTenantNumber++)
{
 New-Variable -Name "var$firstTenantNumber" -Value $firstTenantNumber
 $tenantNumber = $firstTenantNumber.ToString("000")
 $tenantid = -join ($tenantIDPrefix,$tenantNumber)
#Create the user
$createUser = Invoke-RestMethod -Method Post -URI "https://$($VRA)/identity/api/tenants/$($tenantID)/principals" -headers $headers -ContentType "application/json" -body $userBody
Write-Host "Local Admin User for tenant $($tenantid) created successfully" -ForegroundColor Green
}

 }

Function updatevRALocalAdminUserRoles {
 ############# Add Local Admin User to Tenant & IaaS Admin groups ###############

$headers = @{"Accept" = "application/json"}
$headers.Add("Authorization", "Bearer $token")
$principal = "vraadmin@vsphere.local"
$roleIDs = @("CSP_TENANT_ADMIN","COM_VMWARE_IAAS_IAAS_ADMINISTRATOR")

for ($firstTenantNumber=1; $firstTenantNumber -le $numberOfTenants; $firstTenantNumber++)
{
 New-Variable -Name "var$firstTenantNumber" -Value $firstTenantNumber
 $tenantNumber = $firstTenantNumber.ToString("000")
 $tenantid = -join ($tenantIDPrefix,$tenantNumber)
#Add the user to tenant & IaaS admins
foreach ($roleID in $roleIDs) {
$makeUserAdmin = Invoke-RestMethod -Method PUT -URI "https://$($VRA)/identity/api/authorization/tenants/$($tenantID)/principals/$($principal)/roles/$($roleID)" -headers $headers -body "{}"
}
Write-Host "Local Admin User Added to Tenant & IaaS Admins for tenant $($tenantid) " -ForegroundColor Green
 }
 }

Function createvRATenantDirectory {
 ############# Add AD Tenant directory ###############
$headers = @{"Accept" = "application/json"}
$headers.Add("Authorization", "Bearer $token")

$directoryBody= @"
{"@type": "IdentityStore",
"domain": "$adDomain",
"name": "$adDomain",
"alias": "$adDomainalias",
"type": "$type",
"userNameDn": "$adUserNameDn",
"password": "$adBindPassword",
"url": "$adURL",
"groupBaseSearchDn": "$adGroupBaseSearchDn",
"userBaseSearchDn": "$adUserBaseSearchDn"
}
"@
for ($firstTenantNumber=1; $firstTenantNumber -le $numberOfTenants; $firstTenantNumber++)
{
 New-Variable -Name "var$firstTenantNumber" -Value $firstTenantNumber
 $tenantNumber = $firstTenantNumber.ToString("000")
 $tenantid = -join ($tenantIDPrefix,$tenantNumber)
#Create the directory
$createDirectory = Invoke-RestMethod -Method Post -URI "https://$($VRA)/identity/api/tenants/$($tenantID)/directories" -headers $headers -ContentType "application/json" -body $directoryBody
Write-Host "Tenant Directory Created for tenant $($tenantid) " -ForegroundColor Green
}

 }

Function addDomainGroupstovRAAdmins {
############## Add AD Domain Groups to vRA Tenant & IaaS Admin groups ###############

$headers = @{"Accept" = "application/json"}
$headers.Add("Authorization", "Bearer $token")

#Add the user to tenant & IaaS admins
for ($firstTenantNumber=1; $firstTenantNumber -le $numberOfTenants; $firstTenantNumber++)
{
 New-Variable -Name "var$firstTenantNumber" -Value $firstTenantNumber
 $tenantNumber = $firstTenantNumber.ToString("000")
 $tenantid = -join ($tenantIDPrefix,$tenantNumber)
$addTenantAdmins = Invoke-RestMethod -Method PUT -URI "https://$($VRA)/identity/api/authorization/tenants/$($tenantID)/principals/$($tenantAdmins)/roles/$($tenantRoleID)" -headers $headers -body "{}"

$addIaaSAdmins = Invoke-RestMethod -Method PUT -URI "https://$($VRA)/identity/api/authorization/tenants/$($tenantID)/principals/$($iaasAdmins)/roles/$($iaasRoleID)" -headers $headers -body "{}"
Write-Host "Domain groups added to as tenant & IaaS admins for tenant $($tenantid) " -ForegroundColor Green
}
 }

# Call All functions to setup tenants
getvRAAuthToken; createvRATenant; createvRALocalAdminUser; updatevRALocalAdminUserRoles; createvRATenantDirectory; addDomainGroupstovRAAdmins

Distributed vRA validation script

From time to time a distributed vRA deployment can have issues…here is a quick script to verify and validate the important components are up and functioning…without the need to log into multiple components. Here is a diagram of my distributed vRA setup

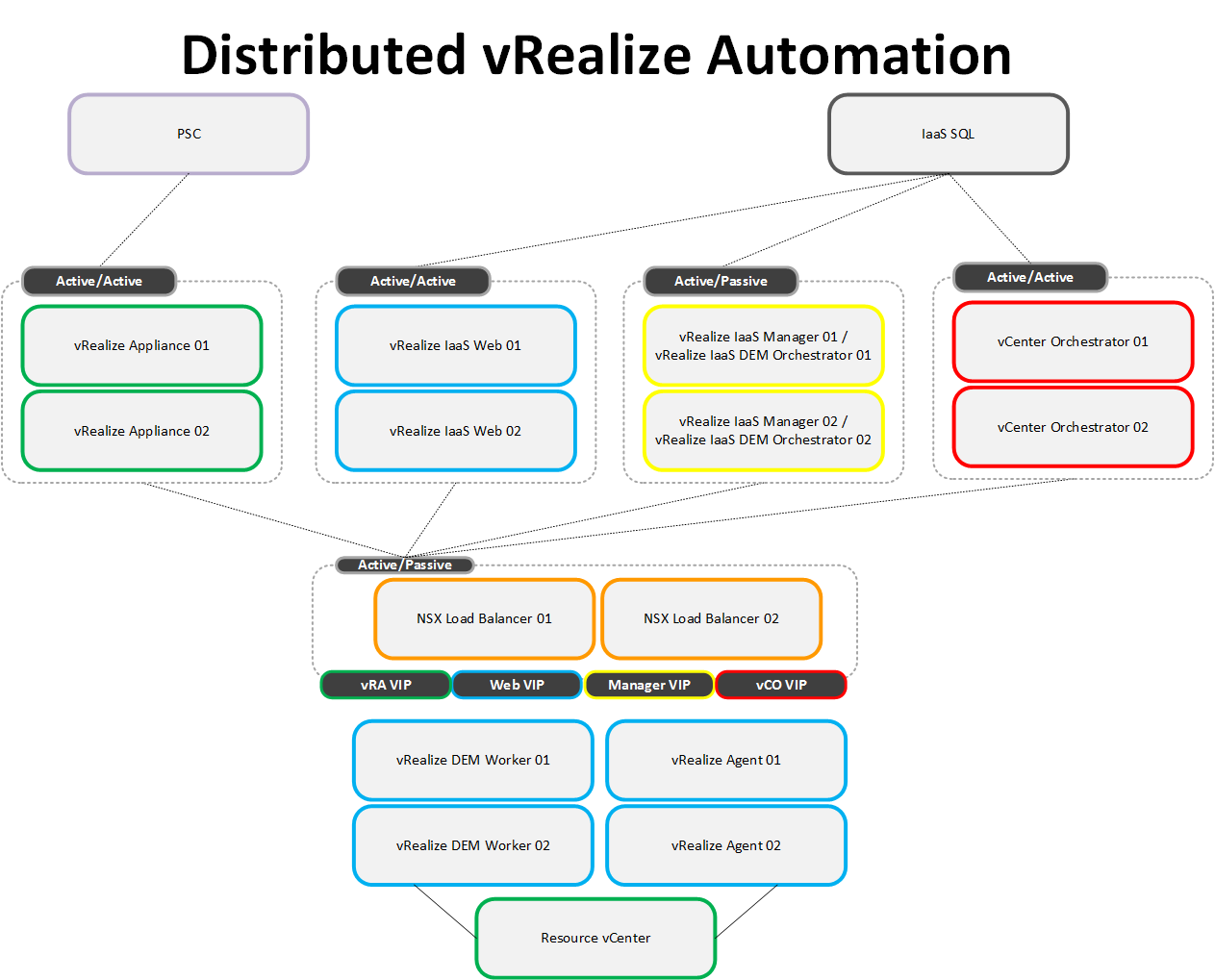

Distributed vRA v4

And here is the script! It has multiple functions to do the following

  • Basic ping tests to each component
  • Get the status of all vRA component services
  • Test the Web & manager server URLs

# Script to check the status of each component of a distributed vRA deployment
# Modify the hostnames to match your environment
$vRAAppliance01FQDN = "vra01.domain.local"
$vRAAppliance02FQDN = "vra02.domain.local"
$vRAWeb01FQDN = "web01.domain.local"
$vRAWeb02FQDN = "web02.domain.local"
$vRAManager01FQDN = "manager01.domain.local"
$vRAManager02FQDN = "manager02.domain.local"
$vRADEM01FQDN = "demw01.domain.local"
$vRADEM02FQDN = "demw02.domain.local"
$vRAAgent01FQDN = "agent01.domain.local"
$vRAAgent02FQDN = "agent02.domain.local"
$vRAComponentServiceURL = "https://vra-vip.domain.local/component-registry/services/status/current"
$webVIPURL = "https://web-vip.domain.local/WAPI"
$managerVIPURL = "https://manager-vip.domain.local/VMPS2"



### DO NOT MODIFY ANYTHING BELOW THIS LINE ###



Function pingHosts {
@"
===============================================================================
Performing basic ping test to each defined component
===============================================================================
"@
$vms = @($vRAAppliance01FQDN, $vRAAppliance02FQDN, $vRAWeb01FQDN, $vRAWeb02FQDN, $vRAManager01FQDN, $vRAManager02FQDN, $vRADEM01FQDN, $vRADEM02FQDN, $vRAAgent01FQDN, $vRAAgent02FQDN)
$collection = $()
foreach ($vm in $vms)
{
 $status = @{ "ServerName" = $vm; "TimeStamp" = (Get-Date -f s) }
 if (Test-Connection $vm -Count 1 -ea 0 -Quiet)
 {
 $status["Ping Results"] = "Up"
 }
 else
 {
 $status["Ping Results"] = "Down"
 }
 New-Object -TypeName PSObject -Property $status -OutVariable serverStatus
 $collection += $serverStatus

}
 }

Function testvRAServices {
@"
===============================================================================
Getting Status of all vRA component services
===============================================================================
"@
Write-Host "Checking status of vRA Component Services" -ForegroundColor Yellow
# Request Service Information from $vRAComponentServiceURL
$vRAURL = Invoke-WebRequest $vRAComponentServiceURL
# Convert the Json response
$json = ConvertFrom-Json -InputObject $vRAURL.content
# Get Service name & status
$serviceInfo = $json.content
# Loop through each service
foreach ($service in $serviceInfo) {
# Get the Service Name
$serviceName = $service.serviceName
# Get the Service status
$serviceStatus = $service.serviceStatus.serviceInitializationStatus
# If Service Status is blank report it as BLANK POSSIBLY STOPPED
 if (!$serviceStatus) {
 $serviceStatus = "BLANK - POSSIBLY STOPPED?"
 }
# If Service Status is FAILED print to screen in red
if ($serviceStatus -eq "FAILED") {
 write-host "$serviceName $serviceStatus" -ForeGroundColor Red
 }
# Otherwise print to screen as normal (Remove this if you only want to report failed services)
 else {
 Write-Host "$serviceName $serviceStatus"}
 }

}


Function testWebVIP {
@"
===============================================================================
Checking status of vRA Web API URL
===============================================================================
"@
Write-Host "Testing IaaS Web Service VIP URL $webVIPURL" -ForegroundColor Yellow
# Create Web Request
$HTTP_Request = [System.Net.WebRequest]::Create($webVIPURL)

# Get a response
$HTTP_Response = $HTTP_Request.GetResponse()

# Get the HTTP code
$HTTP_Status = [int]$HTTP_Response.StatusCode

If ($HTTP_Status -eq 200) {
 Write-Host "IaaS Web Service is OK!" -ForegroundColor Green
 # Close HTTP request
$HTTP_Response.Close()
}
Else {
 Write-Host "IaaS Web Service is not responding. Restart IIS on Web01. If that does not resolve then Reboot Web01" -ForegroundColor Red
}
 }

Function testMgrVIP {
@"
===============================================================================
Checking status of vRA Manager API URL
===============================================================================
"@
Write-Host "Testing IaaS Manager Service VIP URL $managerVIPURL" -ForegroundColor Yellow
# Create Web Request
$HTTP_Request = [System.Net.WebRequest]::Create($managerVIPURL)

# Get a response
$HTTP_Response = $HTTP_Request.GetResponse()

# Get the HTTP code
$HTTP_Status = [int]$HTTP_Response.StatusCode

If ($HTTP_Status -eq 200) {
 Write-Host "IaaS Manager Service is OK!" -ForegroundColor Green
 # Close HTTP request
$HTTP_Response.Close()
}
Else {
 Write-Host "IaaS Manager Service is not responding. Ensure all vRA services are running on manager01. If that does not resolve then Reboot manager01" -ForegroundColor Red
}
 }


 pingHosts; testvRAServices; testWebVIP; testMgrVIP

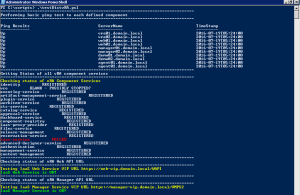

The function pingHosts is a basic ping test to each defined vRA component

The function testvRAServices was an interesting one to write as I’m not overly familiar with working with APIs so it was a learning experience. I wanted to be able to report the status of all vRA services listed on the VAMI administration UI of a vRA appliance (https://vra:5480). The URL that the services are listed on is https://vra-vip.domain.local/component-registry/services/status/current so using the powershell Invoke-WebRequest you get back the page information.

Invoke-WebRequest

Line 56 in the script puts the page contents into a variable we can work with. You can see that the information we want is stored in Content (ServiceStatus) in Json format so you need to take that Json and convert it to  to powershell readable text using the ConvertFrom-Json function (ConvertFrom-Json converts a JSON-formatted string to a custom object (PSCustomObject) that has a property for each field in the JSON string) Line 58 does this

We then put each service into the $serviceinfo variable and loop through them to get the service name and service status.

Side note here: Originally I was querying $json.content.serviceStatus to get the details i wanted but i noticed I wasnt getting a full list of services, i was getting some blank content and also some duplicate service names. This is how i was doing it

$vRAURL = Invoke-WebRequest "https://vra-vip.vlab.local/component-registry/services/status/current"
$json = ConvertFrom-Json -InputObject $vRAURL.content
$serviceInfo = $json.content.serviceStatus | Select serviceName,serviceInitializationStatus $serviceInfo

Here is that that returns. As you can see its not the full list and there is a duplicate entry so its not much use

Duplicate Results

I dug a little into the API and it seems that it does indeed contain inconsistent information. Here is an excerpt with some issues where the actual service name is content-management but the serviceStatus reports the name as advanced-designer-service

Service Name issue

So to get an accurate list i queried the serviceName field to get the name and the serviceStatus.serviceInitializationStatus to get the service status. Unfortunately doing it this way doesnt allow creating a nice formatted table (at least i havent figured out how to do it yet!) but i did get it to print out each service & status on the same line.

Line 68: In my lab i use a vRO appliance so the internal vRO service on the vRA appliance is stopped. The service status comes back blank so i added a check to report blank service status as “BLANK – POSSIBLY STOPPED?”.

Line 72: I also added a check to print any failed services in red so they stand out.

The testWebVIP and testManagerVIP functions use the powershell System.Net.WebRequest to get the HTTP status code for a given URL. If the status code comes back as 200 then everything is ok. If not there is an issue with your IaaS components

So there you have it. A quick way to verify the status of all of the important vRealize Automation components and services. In my example below the iaas-service is in a failed state (The driving reason for creating this script! 🙂 )

Script Results

Create a local Tenant user in vRA7 using the rest API

VMware vRealize Automation 7.x is the latest version of VMware’s cloud automation software. With the new version comes a change in the way tenants (and user roles for same) are setup. In previous versions you would do the following to create a tenant

  • Log into the default tenant
  • Create a new tenant
  • Add an identity store
  • Add domain users/groups as tenant & IaaS admins
  • Log into the new tenant as a tenant and IaaS admin and start configuring the tenant

With vRA 7.x the procedure changes (and becomes more cumbersome IMO)

  • Log into the default tenant
  • Create a new tenant
  • Create a local user for the tenant
  • Add the local user as a tenant & IaaS admin
  • Log into the new tenant as the local user
  • Setup identity store directories
  • Log back into the default tenant
  • Edit the new tenant
  • Add domain users/groups as tenant & IaaS admins
  • Log into the new tenant as a tenant and IaaS admin and start configuring the tenant

So when it comes to trying to automate tenant creation its not as easy as it used to be for 6.x. For 6.x I’ve used cloud client (if you’re not familiar with CloudClient i’d recommend checking it out here https://developercenter.vmware.com/tool/cloudclient/4.1.0 )

The CloudClient commands required for 6.x are as follows:

  • Firstly login to CloudClient
vra login userpass --server vra-vip.domain.local --user administrator@vsphere.local --password Password123! --tenant vsphere.local
  • Next create the tenant
vra tenant add --name NewTenant --url newtenant

  • Next add the identity store for AD authentication
vra tenant identitystore add --tenantname NewTenant --name Domain.local --url ldap://domain.local --groupbasedn 'ou=vRA,DC=domain,DC=local' --domain domain.local --userdn 'cn=adbind_vra,OU=vRA,DC=domain,DC=local' --password Password123! --type AD --userbasedn 'ou=vRA,DC=domain,DC=local'

  • Next add Tenant administrators to the new tenant
vra tenant admin update --tenantname NewTenant --role TENANT_ADMIN --action ADD --users vRA_Tenant_Admins@domain.local

  • Next add IaaS Administrators to the new tenant
vra tenant admin update --tenantname NewTenant --role IAAS_ADMIN --action ADD --users vRA_IaaS_Admins@domain.local



So enter vRA 7.x. Using CloudClient the first 2 steps are the same as before

  • Firstly login to CloudClient
vra login userpass --server vra-vip.domain.local --user administrator@vsphere.local --password Password123! --tenant vsphere.local

  • Next create the tenant
vra tenant add --name NewTenant --url newtenant

  • Next we need to create a local user in the tenant. I couldn’t find a function in CloudClient to create the local user. I checked the developer API guide and I also tried the excellent community module PowervRA http://www.jonathanmedd.net/2016/03/introducing_powervra.html but no joy so i enlisted the help of my colleague Sean Leahy @leahy_s to query the REST API. We ran the add user operation manually and monitored the process in FireFox (Press F12 to get access to the browser console debugger.) Manually enter the user details and click Ok and you will see a POST operation in the console. See below



F12 Console

  • Click on the POST operation and inspect the REST information. In the headers tab you can see the Content-Type is application/json and in the params tab you can see the post data

F12 Params

  • Using the API guide we found the required REST method to get an authentication token from vRA that will allow us to POST data. In this example i’m using Advanced REST client in Chrome to retrieve the auth token from vRA. So the URL to POST to is https://vra-appliance-FQDN/identity/api/tokens and the credentials payload needs to be JSON formatted. See below

RESt Auth to vRA

  • The response back should contain a base64 encoded string that will be used as an authorization token to post the new user.
  • So again using Advanced REST client in chrome (or your preferred method) we need to do a POST operation to create the user. This time you need to use URL https://vra-appliance-FQDN/identity/api/tenants/NewTenant/principals. In the headers you need Accept set to Application/json and Authorization set to the base64 encoded token string we got in the previous step. IMPORTANT: You must prefix the token with Bearer or it will not work! See below



POST User

  • Here is the full JSON payload as you cant see it all in the screenshot
{"@type": "User",
 "firstName": "vRA",
 "lastName": "Admin",
 "emailAddress": "vraadmin@domain.local",
 "description": "vRA Admin",
 "locked": false,
 "disabled": false,
 "password": "Password123!",
"domain": "vsphere.local",
"userName":"vraadmin",
 "principalId": {"domain": "vsphere.local",
 "name": "vraadmin"}
 }
  • Ok deep breaths…if you’re still with me you can now proceed to adding the user to the tenant and IaaS administrator groups!
  • In the interest of trying out different tools I decided to try using PowervRA for this task. (I will revisit this using the REST API directly next week) I wont go into installing PowervRA. There are good instructions here https://github.com/jakkulabs/PowervRA
  • In PowervRA run the following commands
Add-vRAPrincipalToTenantRole -TenantId NewTenant -PrincipalId vraadmin@vsphere.local -RoleId CSP_TENANT_ADMIN

Add-vRAPrincipalToTenantRole -TenantId NewTenant -PrincipalId vraadmin@vsphere.local -RoleId COM_VMWARE_IAAS_IAAS_ADMINISTRATOR

Not sure why the complete difference in RoleId name format but thats the only way i could get it to work!

So now we have a tenant with a local user that is both tenant admin & IaaS admin but we still dont have an AD directory service to authenticate AD users. So for this we will again leverage the REST API. Using the same auth token as before, this time we need to hit https://vra-appliance-FQDN/identity/api/tenants/NewTenant/directories

POST Identity Store

  • Here is the full JSON payload as you cant see it all in the screenshot
{
@type: "IdentityStore",
domain: "domain.local",
name: "Domain.local",
alias: "Domain",
type: "AD",
userNameDn: "cn=adbind_vra,OU=EHC,DC=domain,DC=local",
password: "Password123!",
url: "ldap://domain.local:389",
groupBaseSearchDn: "ou=EHC,DC=domain,DC=local",
userBaseSearchDn: "ou=EHC,DC=domain,DC=local"
}

  • We can now go and add our domain users as Tenant admins and IaaS admins to allow domain users to log into the new tenant! So its a longer process than 6.x but its still doable (even if parts of it are undocumented in the API guide!). I will be working on scripting this for multiple tenants so hopefully keep an eye out for a follow up post as i fumble my way through using the vRealize Automation REST API! 🙂

Special thanks again to my colleague Sean Leahy for the REST pointers!
