Uh Oh..Expired vCAC Certs…..

Hit an issue in the lab this week with vCAC/IaaS where the self signed certs had expired. Self signed certs last 12 months..note to self…setup CA! This was compounded by the expiry of the internal Solution User’s certificate. more info on that here

Anyways here is the error and how i got things working again…

*** Service Unreachable

A required service cannot be reached at the expected address.

Please contact your system Administrator for Assistance.

Reference error REPO404. ***



Browse to https://vcacFQDN:5480

  • Navigate to SSL and select Generate from the drop down list to generate a new self signed cert & Save

On the IAAS VM open an elevated command prompt and run the following:

  • cd c:\”Program Files (x86)”\VMware\vCAC\Server\”Model Manager Data”\Cafe
  • Vcac-Config.exe UpdateServerCertificates -d iaas_db_name -s sqlServerFQDN -v

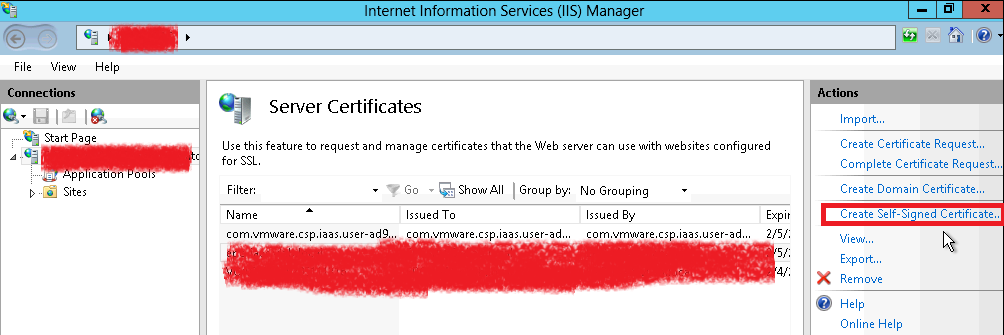

Open IIS Manager on the IaaS VM & browse to Server Certificates
Click generate self-signed on the right hand pane

Create Self Signed
Fill in the IAAS FQDN and click Finish

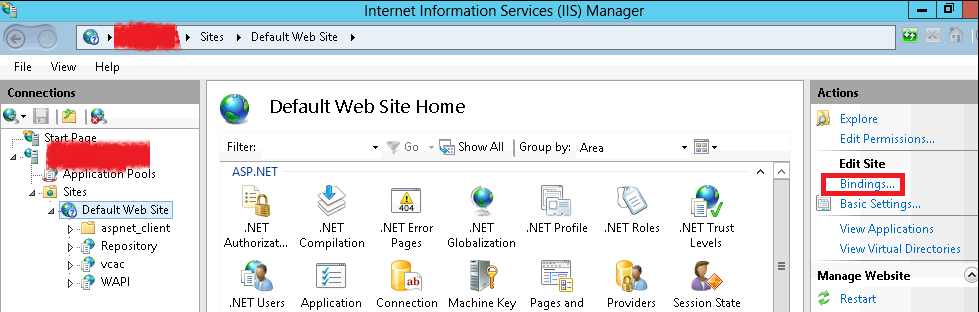

Navigate to the Default site and click Binding on the right hand pane

Bindings

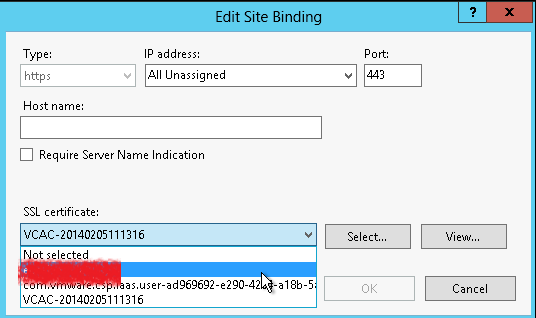

Edit the https binding and select the new certificate and save

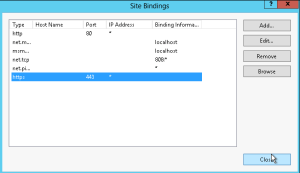

Set Binding

Select Cert
Open an elevated command prompt and run the following:

  • iisreset
  • Vcac-Config.exe GetServerCertificates -url https://vcacFQDN –FileName .\Vcac-Config-2015-02-06.data -v (insert your current date to this filename)
  • Vcac-Config.exe RegisterSolutionUser -url https://vcacFQDN –Tenant vsphere.local -cu administrator@vsphere.local -cp Password –FileName Vcac-Config-2015-02-06.data -v (insert your current date to this filename)
  • Vcac-Config.exe MoveRegistrationDataToDB -d -d iaas_db_name -s sqlServerFQDN -f Vcac-Config-2015-02-06.data -v (insert your current date to this filename)

Restart all vCAC IAAS services

Open an elevated command prompt and run the following:

SSH to the vCAC virtual appliance and run the following:

service vcac-server restart

Browse to the vCO configurator https:vcoFQDN:8283

  • Click on Network > SSL page & delete the vCAC & IAAS certificates
  • Import the new vCAC and IAAS certificates on the same page

If using ITBM Browse to https://itbmFQDN:5480

  • Re-register to vCAC ensuring that “Accept vCAC certificate” is ticked
    Reboot ITBM

Browse to https://vcacFQDN and https://iaasFQDN  and add the certs.

And finally….a word of advice…setup a CA or make a note of expiring certs!!!
